Current Transformer vs Potential Transformer: How to Choose the Right One for Power Distribution Systems

In commercial and industrial power distribution systems, accurate electrical measurement is not optional it is essential for safety, protection, billing accuracy, and system performance.

Current Transformers and Potential Transformers, also known as Voltage Transformers, are instrument transformers that play a critical role in metering and protection circuits. If you’re designing or upgrading a distribution panel, installing a dry-type transformer, or integrating protection relays into switchgear, understanding the difference between CTs and PTs ensures proper system design and long-term reliability.

This guide explains how CTs and PTs work and how they integrate with modern power distribution equipment.

What Is a Current Transformer (CT)?

A Current Transformer measures alternating current flowing through a conductor. It steps down high primary current to a lower, standardized secondary output typically 5A or 1A making it safe and practical for metering and protection relays.

Key characteristics:

• Connected in series with the load

• Secondary must never be left open-circuited (risk of dangerously high voltage)

• Rated by turns ratio and burden (VA)

• Accuracy classes: 0.1, 0.2, 0.5, 1, 3, 5 (metering); 5P, 10P (protection)

Where CTs Are Used in Power Distribution

• Panelboard metering systems

• Circuit breaker protection schemes

• Motor protection relays

• Energy monitoring in industrial facilities

• Load monitoring on dry-type transformer secondary circuits

In commercial facilities, CTs are commonly installed inside panelboards and switchgear to monitor current flowing from distribution transformers to downstream loads.

What Is a Potential Transformer (PT)?

A Potential Transformer (also called a Voltage Transformer or VT) steps down high system voltage to a safe, standardized level typically 110V or 120V for meters, relays, and monitoring equipment.

Key characteristics:

• Connected in parallel across the voltage source

• Secondary should never be short-circuited

• Rated by voltage ratio and burden (VA)

• Accuracy classes: 0.1, 0.2, 0.5, 1, 3 (metering); 3P, 6P (protection)

Where PTs Are Used

• Voltage monitoring in switchgear

• Over/under-voltage protection

• Power factor and energy calculations

• Generator synchronization panels

• Substation automation systems

In industrial power systems, PTs provide the voltage reference required for accurate energy measurement and relay coordination.

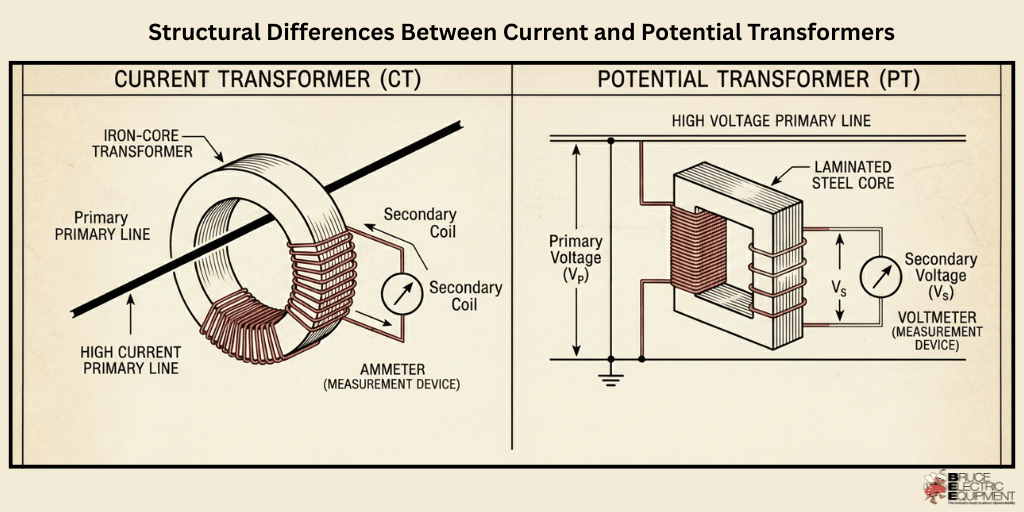

CT vs PT: Side-by-Side Comparison

How CTs and PTs Work Inside Power Distribution Systems

In real-world installations, CTs and PTs rarely operate alone. They function as part of a broader electrical distribution system that includes:

• Dry-type distribution transformers

• Panelboards and switchboards

• Circuit breakers

• Safety switches

• Automatic transfer switches

• UPS systems

For example:

• A dry-type transformer steps down utility voltage to 480V or 208V.

• CTs installed in the panelboard measure load current.

• PTs provide voltage reference.

• Protection relays use both signals to calculate kW, kVA, power factor, and fault conditions.

• Circuit breakers respond to abnormal current detected through CTs.

This integration ensures safe, efficient, and compliant power distribution across commercial buildings, healthcare facilities, data centers, and manufacturing plants.

How to Choose Between a CT and a PT

The answer starts with one simple question: What are you measuring current or voltage?
But the real selection process goes deeper than that.

1. Define Your Measurement Purpose

If you need to monitor current draw, power consumption, or detect overcurrent faults choose a CT. If you’re measuring voltage levels, performing power factor calculations, or protecting against voltage anomalies choose a PT.

2. Match the Accuracy Class to Your Application

For billing and revenue metering, use accuracy class 0.2 or 0.5. For protection relays, a 5P or 10P class CT, or 3P/6P PT, is sufficient. Using a lower-accuracy unit in a revenue application can result in costly errors.

3. Check the Burden Rating

Burden is the load the secondary circuit places on the transformer. Always match or stay within the transformer’s rated VA burden. Exceeding it degrades accuracy and can damage equipment.

4. Consider the Installation Environment

• Indoor vs. outdoor – outdoor units require weatherproof enclosures or higher IP ratings

• Switchgear panels – space constraints may require bar-type or window-type CTs

• High-voltage systems – oil-insulated or SF₆ insulated PTs may be required above 33kV

5. Verify the System Voltage and Current Ratings

Always size your CT or PT based on the maximum expected primary current or voltage, not the nominal value. A CT rated at 200/5A used on a 400A circuit will saturate leading to inaccurate readings and potential relay misoperation.

6. Consider Safety Standards and Compliance

Ensure the transformer meets IEC 61869 or IEEE C57.13 standards depending on your region and application. For utility-grade metering, third-party type-tested units may be required.

Common Installation Mistakes to Avoid

1. Opening a CT secondary while energized

2. Shorting a PT secondary

3. Ignoring polarity markings

4. Exceeding rated burden

5. Using metering-class units in protection circuits

Improper instrument transformer selection can result in relay misoperation, nuisance breaker trips, or inaccurate energy reporting.

When You Need Both CTs and PTs

Most commercial and industrial systems require both especially in:

• Three-phase energy monitoring systems

• Industrial switchgear

• Feeder protection panels

• Generator synchronization systems

• Data center distribution systems

Together, CTs and PTs allow calculation of:

• Real power (kW)

• Apparent power (kVA)

• Reactive power (kVAR)

• Power factor

These measurements are critical for optimizing transformer loading, improving energy efficiency, and maintaining power quality.

Why Proper Instrument Transformer Selection Matters in Commercial Facilities

In facilities that rely on continuous power such as healthcare buildings, manufacturing plants, and IT infrastructure measurement accuracy directly impacts:

• Protection reliability

• Equipment lifespan

• Transformer performance

• Breaker coordination

• Compliance with electrical standards

Instrument transformers are part of a larger ecosystem that includes dry-type transformers, panelboards, circuit protection devices, and backup power systems.

FAQs

Q1: What is the main difference between a current transformer and a potential transformer?

A: A current transformer steps down high current to a measurable level and is connected in series with the circuit. A potential transformer steps down high voltage and is connected in parallel. CTs measure current, PTs measure voltage.

Q2: Can a current transformer be used to measure voltage?

A: No. A current transformer is designed specifically for current measurement. Using it to measure voltage would be inaccurate and potentially dangerous.

Q3: Which is more expensive a CT or PT?

A: Potential transformers are generally more expensive due to higher insulation requirements and construction complexity, especially at transmission voltage levels.

Conclusion

Choosing between a Current Transformer and a Potential Transformer comes down to what you need to measure current or voltage but proper selection impacts far more than just readings. When correctly integrated with dry-type transformers, panelboards, breakers, and other power distribution equipment, CTs and PTs ensure accurate monitoring, reliable protection, and long-term system performance. Selecting the right combination helps maintain safety, efficiency, and compliance across commercial and industrial electrical systems.
