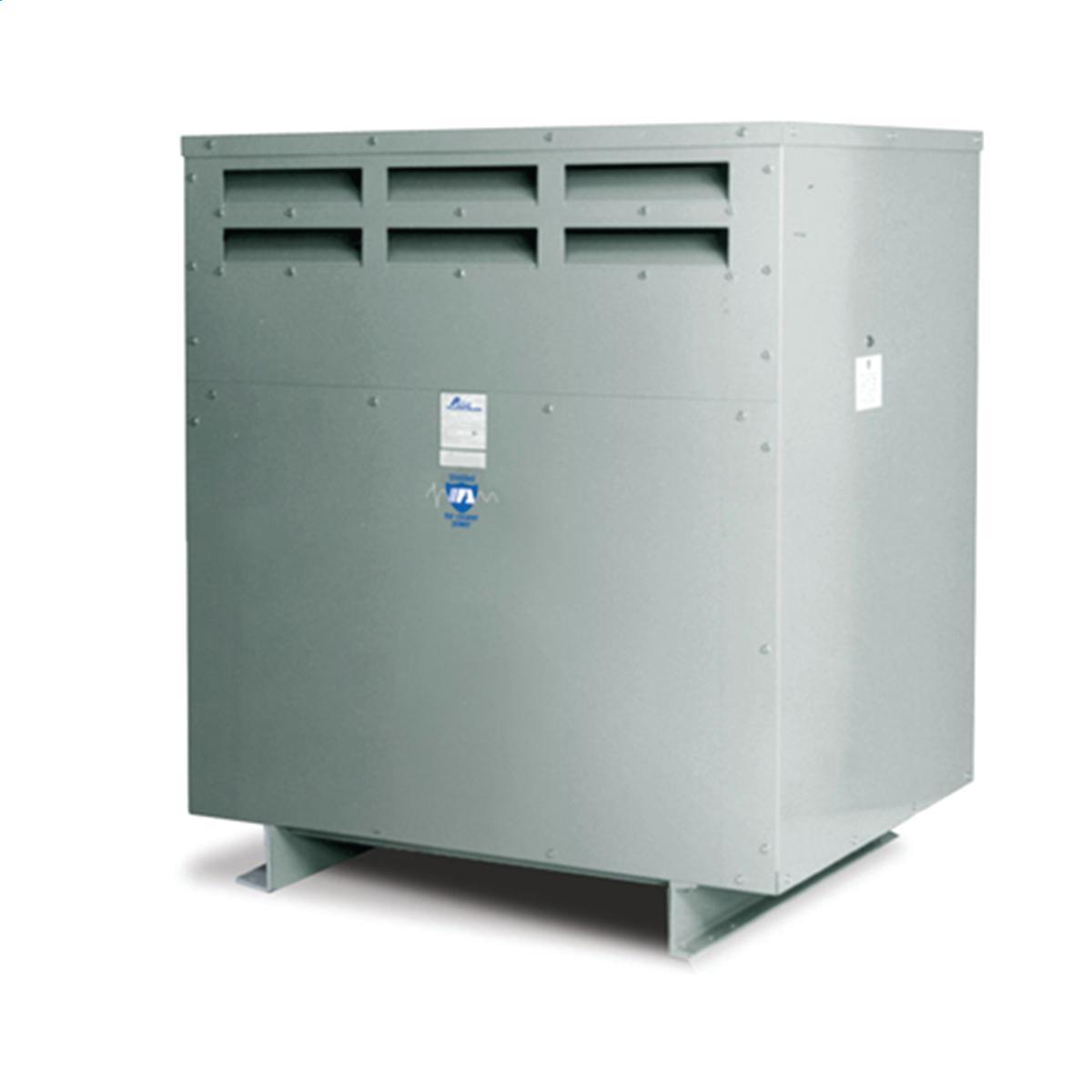

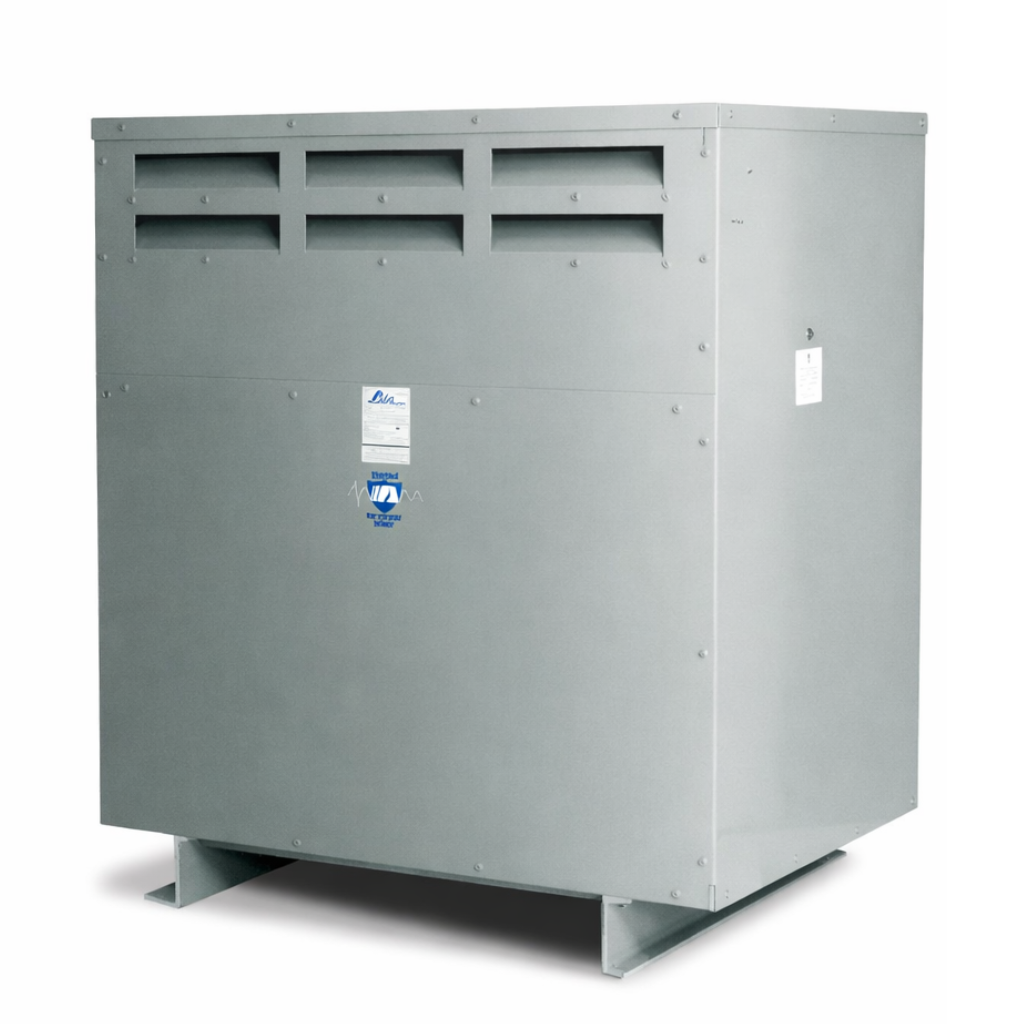

Drive Isolation Transformers

A drive isolation transformer is a transformer designed to isolate electrical loads from the power source while also adjusting voltage levels as required. It is frequently used as an isolation transformer for VFD systems, where it helps reduce electrical noise, manage voltage differences, and protect connected equipment.

Most units are designed as a dry type isolation transformer, meaning they use air cooling instead of liquid. This design makes them suitable for indoor industrial environments where safety, low maintenance, and reliability are important. An industrial drive isolation transformer is typically used in applications involving motor drives, pumps, compressors, and automated machinery.

Working Principle of a Drive Isolation Transformer

A dry type drive isolation transformer works by electrically isolating the power source from the connected load while transferring energy through electromagnetic induction. It is commonly used as an isolation transformer for VFD systems, where it helps separate the input power from the motor drive.

When power enters the transformer, it is transferred from the primary winding to the secondary winding through a magnetic field, allowing voltage to be stepped up or down as required. This process ensures electrical isolation, improved noise control, and voltage matching for connected equipment. Most units are designed as a dry type isolation transformer, making them suitable for indoor industrial environments where safety and low maintenance are essential.

Benefits of Using Drive Isolation Transformers

Using a drive isolation transformer in industrial applications provides the following advantages:

• Equipment Protection: Helps protect sensitive drives, motors, and control systems from voltage spikes and electrical disturbances
• Electrical Isolation: Separates input and output circuits, reducing the risk of faults affecting connected equipment
• Improved Power Stability: Supports consistent voltage delivery in systems using variable frequency drives
• Noise Reduction: Helps reduce electrical interference in VFD-driven applications
• Safe Indoor Operation: A dry type isolation transformer is ideal for indoor use due to its air-cooled, low-maintenance design

Note: While a drive isolation transformer can help reduce electrical noise, dedicated harmonic mitigating transformers may be required for significant harmonic reduction.

Applications Drive Isolation Transformers

A dry type drive isolation transformer is widely used in industries where reliable and isolated power is required for motor-driven systems.

• Oil & Gas and Mining Operations: Heavy-duty motor applications
• Industrial Automation: CNC machines, conveyors, and robotic systems
• HVAC Systems: Variable speed fans, pumps, and compressors
• Water and Wastewater Treatment: Pump and control systems
• Data Centers: Supporting stable and isolated power environments
• Renewable Energy

These applications often require an industrial drive isolation transformer to ensure consistent performance and equipment protection.

Factors to Consider When Choosing Drive Isolation Transformers

As drive isolation transformers (DIT) are available in multiple configurations, selecting the right unit requires evaluating key parameters:

• kVA Rating: Must match the load requirements of the system
• Voltage and Power Ratings: Ensure compatibility with system requirements
• Application Type: Important when selecting an isolation transformer for VFD systems
• Environmental Conditions: Consider temperature, dust, and installation location
• Impedance: Helps maintain voltage stability and system performance
• Safety and Compliance: See if the chosen unit meets all relevant safety standards and compliance requirements. This helps in avoiding any potential hazards or regulatory issues.

A dry type isolation transformer is typically preferred for indoor industrial environments due to its safety and low maintenance.

At Bruce Electric, we supply drive isolation transformers for sale, including new, used, and reconditioned units to meet a wide range of industrial requirements. Our inventory includes dry type isolation transformers in multiple voltage and kVA configurations suitable for motor drives and power distribution systems.

• Tested and inspected equipment
• Support for custom voltage configurations
• Fast turnaround and nationwide shipping across the USA
• Backed by our warranty and service support

Submit an RFQ with your specifications to get a quick and accurate quote.

Frequently Asked Questions on Power Isolation Transformers

Q1. What is the purpose of an isolating transformer?

An isolating transformer is used to provide electrical separation between input and output circuits, improving safety, reducing electrical noise, and protecting sensitive equipment. A dry type isolation transformer also helps improve power quality in VFD applications.

Q2. What is the difference between an isolation transformer and a normal transformer?

An isolation transformer provides complete electrical separation between primary and secondary windings, while a normal transformer mainly steps voltage up or down. A drive isolation transformer is specifically designed to handle non-linear loads and harmonic distortion from VFD systems.

Q3. What are the three basic functions of dry type drive isolation transformers?

The three main functions of a drive isolation transformer are electrical isolation, voltage transformation, and harmonic mitigation. These functions help protect equipment, stabilize voltage, and improve power quality in industrial drive systems.

Q4. How to size a drive isolation transformer?

To size a dry type isolation transformer, match the transformer kVA rating to the load requirements of the VFD, and ensure correct input/output voltage and phase configuration. Proper sizing ensures efficient performance and prevents overheating or system failure.

Q5. What is a drive isolation transformer used for?

A drive isolation transformer is used in VFD and motor drive systems to isolate electrical noise, reduce harmonics, and protect upstream power equipment. It is commonly used in industrial applications where stable and clean power is essential.
