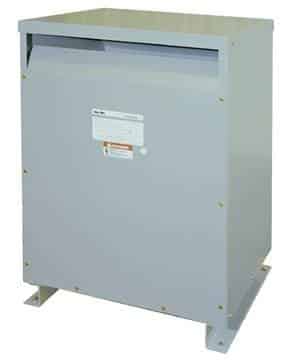

T48SF2Y-300-K13

SKU:T48SF2Y-300-K13

safeCheckout

Description

The design features of Federal Pacific UL & CUL Listed ventilated dry-type transformers assure versatile, economical, and reliable distribution of power. All transformers are fully tested to insure trouble-free installation and operation. Availability across a variety of material, temperature, K-factor and enclosure sizes makes these transformers suitable for a wide variety of applications. Federal Pacific ventilated dry-type transformers incorporate wire and/or strip wound coils in a barrel wound configuration. Horizontal and vertical spacers are strategically positioned in the windings to brace the winding layers and allow maximum ventilation. The electrical grade core steel is arranged in a construction designed to accommodate the coils. The insulation system has received a 220°C continuous rating from Underwriters Laboratories, Inc. derived from the average conductor temperature rise of 150°C, hotspot temperature gradient of 30°C, and a maximum ambient temperature of 40°C. Ratings in the 600V class are available from .050 through 333 KVA in single-phase configurations and from 3 through 1500 KVA in three-phase. All standard primary and secondary voltage ratings are provided to match load requirements to the distribution system. The air-cooled dry-type construction requires no special vaults for installation. The units may be located in almost any indoor location convenient to the load being served. Most transformers are also available for outdoor installations. Maintenance requires only periodic inspection of cable connections and removal of any dust accumulation. All Federal Pacific three-phase transformers and most single-phase models are provided with taps in the primary winding to compensate for input voltage variations. The taps will provide a range of voltage adjustment above and/or below the nominal voltage rating of the transformer. The available quantity, location, and percentage of the tap conNections are shown in the transformer specifications. All transformers are furnished with a nameplate showing the terminal and tap arrangements. Modern electronic switching elements can produce non-linear or non-sinusoidal wave shapes in the current on the load side of a transformer, which can introduce harmonic distortion. The distortions can couple with the fundamental current wave and create current pulses that exceed the nameplate ampere rating of the power source and cause transformers to run hotter than expected. A K-Factor Transformer is designed to handle harmonic content in its load current without exceeding its operating temperature limits. A specific K-Factor rating indicates that a transformer can supply its rated KVA load output to a load with a specified amount of harmonic content.

Additional information

  • PHASE:

    THREE

  • PRIMARY VOLTAGE:

    480Δ

  • SECONDARY VOLTAGE:

    208Y/120V

  • KVA:

    300

  • TEMP RISE:

    115° C

  • ENCLOSURE TYPE:

    Ventilated

  • CONDUCTOR:

    Aluminum

  • K FACTOR:

    K13

  • FEDERAL WAREHOUSE:

    In Stock
