P2XLF21-10-N

Description

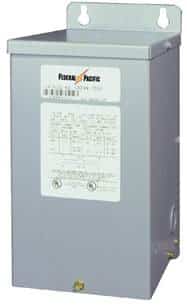

The P2XLF21-10-N 240 volts Federal Pacific Transformer is a 10 kVA dry type transformer designed for high performance and durability in a variety of environments. This single-phase encapsulated transformer features a totally enclosed, compound-filled construction, with the core and coil assembly embedded in a polyester resin. This design provides solid insulation and outstanding resistance to dust, moisture, and harsh atmospheric conditions.

Built for efficient power distribution, the P2XLF21-10-N one phase dry type transformer supports a primary voltage of 240/480 volts and secondary voltage of 120 volts. The high thermal conductivity of the encapsulating compound allows for a compact and lightweight form factor while maintaining superior heat dissipation.

Key Features of P2XLF21-10-N 10 kVA dry type transformer:

• P2XLF21-10-N 10 kVA dry type transformer with compact and efficient design.

• Fully encapsulated in polyester resin for durability and sound dampening.

• Withstands harsh environments: dust, moisture, and temperature extremes.

• Large wiring compartment with knockouts for fast, easy installation.

• Uses 90°C cable for safe operation at elevated compartment temperatures.

• Supplied with flexible leads marked for easy identification.

• P2XLF21-10-N 240 volt dry type transformer, compatible with 120V and 480V systems.

• Quiet operation – sound levels consistently below NEMA standards.

• P2XLF21-10-N one phase dry type transformer suitable for wall-mount applications.

• No UL-506 special markings required for adjacent clearances.
