T20LH42-15

Description

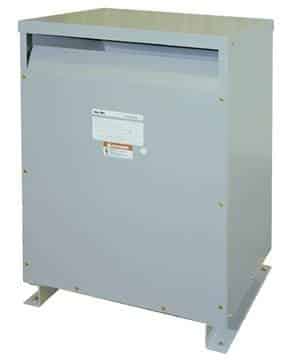

The Federal Pacific T20LH42-15 208 volts transformer is a high-performance three phase dry type transformer designed for reliable indoor power distribution. With a 15 kVA rating, this unit operates efficiently in both commercial and industrial settings, offering durable performance and ease of installation. The T20LH42-15 dry type transformer features ventilated construction with barrel-wound coils and strategically placed horizontal and vertical spacers for optimal cooling and structural support.

This 480 volt to 208 volt transformer is built using electrical-grade core steel and a UL-recognized insulation system with a 220°C continuous rating. Its design allows for safe air-cooled operation in a wide range of environments without the need for special vaults. The transformer includes primary taps for voltage adjustment, making it adaptable to various load requirements and input conditions.

Key Features of Federal Pacific T20LH42-15 15 kVA Transformer:

• Ventilated dry-type construction for optimal air-cooling and heat dissipation

• Barrel-wound coils with internal bracing for mechanical stability

• 220°C insulation system, UL recognized, ensuring long life under demanding conditions

• Primary voltage taps to compensate for input voltage variations

• Air-cooled design eliminates the need for oil or special vaults

• Nameplate included showing tap arrangements and terminal configurations

• Suitable for a wide range of indoor installations, with many models also available for outdoor use

• Easy maintenance with periodic inspection and dust removal
