T48LH2Y-15

Description

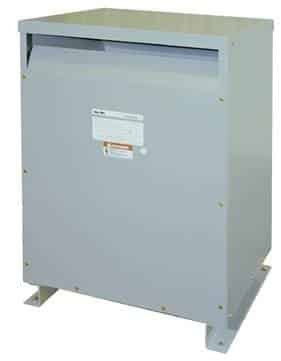

The Federal Pacific T48LH2Y-15 is a reliable and energy-efficient three-phase transformer, designed for power distribution in commercial and industrial applications. With a 15 KVA power rating, this transformer operates with a primary voltage of 480 Volts and a secondary voltage of 208 Volts, making it ideal for a wide range of electrical systems. Its aluminum windings, arranged in a barrel wound configuration, provide efficient power transfer while maintaining excellent ventilation. The NEMA 2 general-purpose rating ensures safe and efficient operation in indoor environments.

This transformer features a UL-approved insulation system rated for continuous operation at 220°C, with an average conductor temperature rise of 150°C and a 30°C hotspot gradient. Its durable steel core construction provides a stable and long-lasting structure, while the lugs and bolt-down terminations allow for easy installation. With a compact size of 19.375 x 17.125 x 29 inches, this transformer is suitable for installations with limited space, ensuring high performance in demanding applications.

Key Features T48LH2Y-15 15 KVA Transformer:

• Aluminum three-phase windings for efficient energy transfer.
• NEMA 2 general-purpose, energy-efficient design.
• UL-approved insulation system rated at 220°C.
• Reverse connectable for flexible wiring.
• Dimensions: 19.375 x 17.125 x 29 inches.
• Lugs/bolt-down terminations for easy installation.
• Steel core construction for durability.
