T48LH2D-30

Description

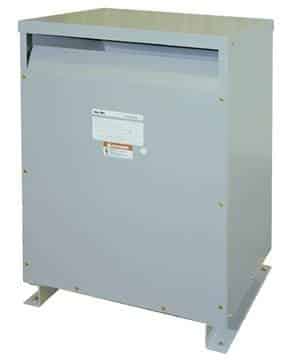

The Federal Pacific T48LH2D-30 transformer is a durable and energy-efficient three-phase transformer, ideal for converting power in various industrial and commercial settings. With a 30 KVA power rating, this transformer operates with a primary voltage of 240 x 480 Volts and a secondary voltage of 120/240 Volts, making it suitable for numerous electrical distribution applications. It features aluminum windings in a barrel wound configuration, with strategically placed spacers to optimize ventilation and heat dissipation. Designed with a NEMA 2 general-purpose rating, it ensures safe and efficient operation for indoor environments.

This transformer boasts a UL-approved insulation system rated for continuous operation at 220°C, including an average conductor temperature rise of 150°C and a 30°C hotspot temperature gradient. Its robust steel core construction ensures long-lasting performance, while the lugs and bolt-down terminations simplify installation. The unit is reverse connectable, offering flexible installation options. Measuring 19.875 x 22.375 x 34 inches, it provides a compact solution for areas with limited space.

Key Features T48LH2D-30 Nema 2 Transformer:

• Aluminum three-phase windings for efficient power transfer.
• NEMA 2 general-purpose, energy-efficient design.
• 60 Hz frequency rating.
• UL-approved insulation system rated at 220°C.
• Reverse connectable for flexible installation.
• Dimensions: 19.875 x 22.375 x 34 inches.
• Lugs/bolt-down terminations for easy wiring.
• Steel core construction for durability.
