T48LH2D-45

Description

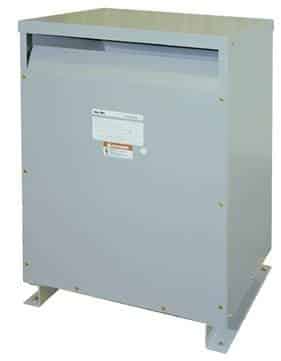

The Federal Pacific T48LH2D-45 is a high-performance three-phase transformer, engineered for reliable power conversion in industrial and commercial applications. With a primary voltage of 240 x 480 Volts and a secondary voltage of 120/240 Volts, this 45 KVA transformer offers efficient energy transfer across a variety of electrical systems. The transformer features aluminum windings arranged in a barrel wound configuration, which enhances ventilation through horizontal and vertical spacers, allowing for optimal heat dissipation. Its NEMA 2 general-purpose rating makes it suitable for indoor use, providing safety and energy efficiency.

This transformer comes equipped with a UL-approved insulation system rated for continuous operation at 220°C, offering a temperature rise of 150°C and a hotspot temperature gradient of 30°C. The robust steel core design ensures durability, while the lugs and bolt-down terminations simplify the installation process. It is reverse connectable, providing flexible installation options for different setups. Measuring 19.875 x 26 x 37 inches, this compact transformer fits easily in limited spaces.

Key Features T48LH2D-45 Nema 2 Transformer:

• NEMA 2 general-purpose, energy-efficient design.
• 60 Hz frequency rating.
• UL-approved insulation system rated at 220°C.
• Reverse connectable for flexible wiring.
• Dimensions: 19.875 x 26 x 37 inches.
• Lugs/bolt-down terminations for easy installation.
• Steel core construction for durability.
