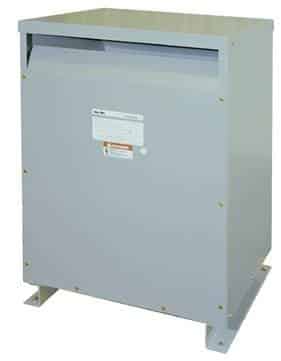

T48LH2D-75

Description

The T48LH2D75 three phase transformer, from Federal Pacific is an effective option for powering commercial systems efficiently. Operating at voltages of 240 x 480 Volts and secondary voltages of 120/240 Volts this 75 KVA transformer is adept at converting energy for a variety of applications. Featuring aluminum windings arranged in a barrel wound design, with vertical spacers to boost airflow and heat dispersion it is engineered to deliver performance even in challenging conditions. With its NEMA 2 general purpose classification contributing to both safety and energy efficiency qualities and making it well suited for applications.

This transformer comes equipped with an insulation system that is approved by UL and can handle temperatures up to 220°C continuously while maintaining a temperature rise of 150°C and a hotspot gradient of 30°C, for reliable performance. The sturdy steel core construction ensures durability while the lugs and bolt down terminations allow for secure installation. Featuring connection capability it offers wiring options to suit different installation requirements. Measuring at 23.S x 28.S x 43 inches the transformer has a design for installation, in tight spaces.

Key Features T48LH2D75 75 KVA Transformer:

• Aluminum three-phase windings for efficient energy transfer.
• NEMA 2 general-purpose, energy-efficient design.
• 60 Hz frequency rating.
• UL-approved insulation system rated at 220°C.
• Reverse connectable for flexible wiring options.
• Dimensions: 23.5 x 28.5 x 43 inches.
• Lugs/bolt-down terminations for easy installation.
• Steel core construction for enhanced durability.
