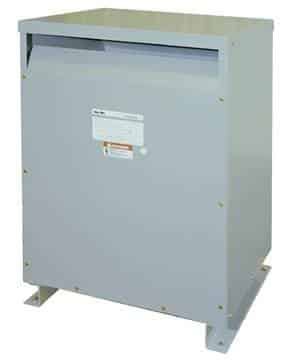

T48LH2Y-30

Description

The Federal Pacific T48LH2Y-30 is a robust and energy-efficient three-phase transformer designed to handle a variety of power distribution needs in industrial and commercial settings. With a 30 KVA power rating, this transformer operates at a primary voltage of 480 Volts and provides a secondary voltage of 208 Volts, making it suitable for a range of electrical systems. The aluminum windings are arranged in a barrel wound configuration, featuring horizontal and vertical spacers that enhance ventilation and heat dissipation, ensuring long-lasting, efficient performance. The transformer also carries a NEMA 2 general-purpose rating, making it ideal for safe, energy-efficient indoor use.

This transformer features a UL-approved insulation system rated for continuous operation at 220°C, with a conductor temperature rise of 150°C and a 30°C hotspot temperature gradient. Its steel core construction ensures durability, while the lugs and bolt-down terminations provide easy installation. The reverse connection capability offers flexibility in wiring options. Measuring 19.875 x 22.375 x 34 inches, this transformer is compact enough to fit into spaces with installation constraints without compromising performance.

Key Features T48LH2Y-30 480 Volts Transformer:

• NEMA 2 general-purpose, energy-efficient design.
• UL-approved insulation system rated at 220°C.
• Reverse connectable for flexible wiring.
• Dimensions: 19.875 x 22.375 x 34 inches.
• Lugs/bolt-down terminations for easy installation.
• Steel core construction for enhanced durability.
