T48LH2Y-75

Description

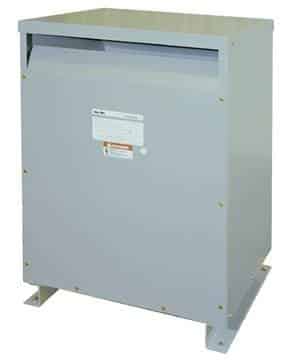

The Federal Pacific T48LH2Y75 is a robust and dependable three phase transformer crafted for commercial power distribution needs that demand durability and efficiency in operation. Rated at 75 KVA power capacity it runs smoothly with a voltage of 480 Volts while delivering a voltage of 208 Volts. Its aluminum coils are positioned in a barrel shaped layout, with added vertical supports to promote cooling and prevent overheating for sustained performance, over time. This energy efficient transformer is designed for use and meets strict requirements to ensure safe operation with a NEMA 2 rating.

This transformer comes with an insulation system approved by UL that can handle temperatures up to 220°C continuously to ensure performance under heavy loads. The temperature rise of 150°C and a hotspot temperature gradient of 30°C provide protection making it suitable, for indoor use. Its air cooled dry type design eliminates the need for vaults making it versatile for installation, in locations. Measuring at 23。̈x28。̈x43 inches this transformer offers performance in a size.

Key Features of T48LH2Y-75 480 Volts Transformer:

• Federal Pacific T48LH2Y-75 transformer.
• 75 KVA power rating.
• Primary voltage: 480 Volts.
• Secondary voltage: 208 Volts.
• Aluminum three-phase windings for efficient energy transfer.
• NEMA 2 general-purpose, energy-efficient design.
• UL-approved insulation system rated at 220°C.
• Reverse connectable for flexible wiring.
• Dimensions: 23.5 x 28.5 x 43 inches.
• Air-cooled, dry-type design for ease of installation.
• Steel core construction for durability and stability.
